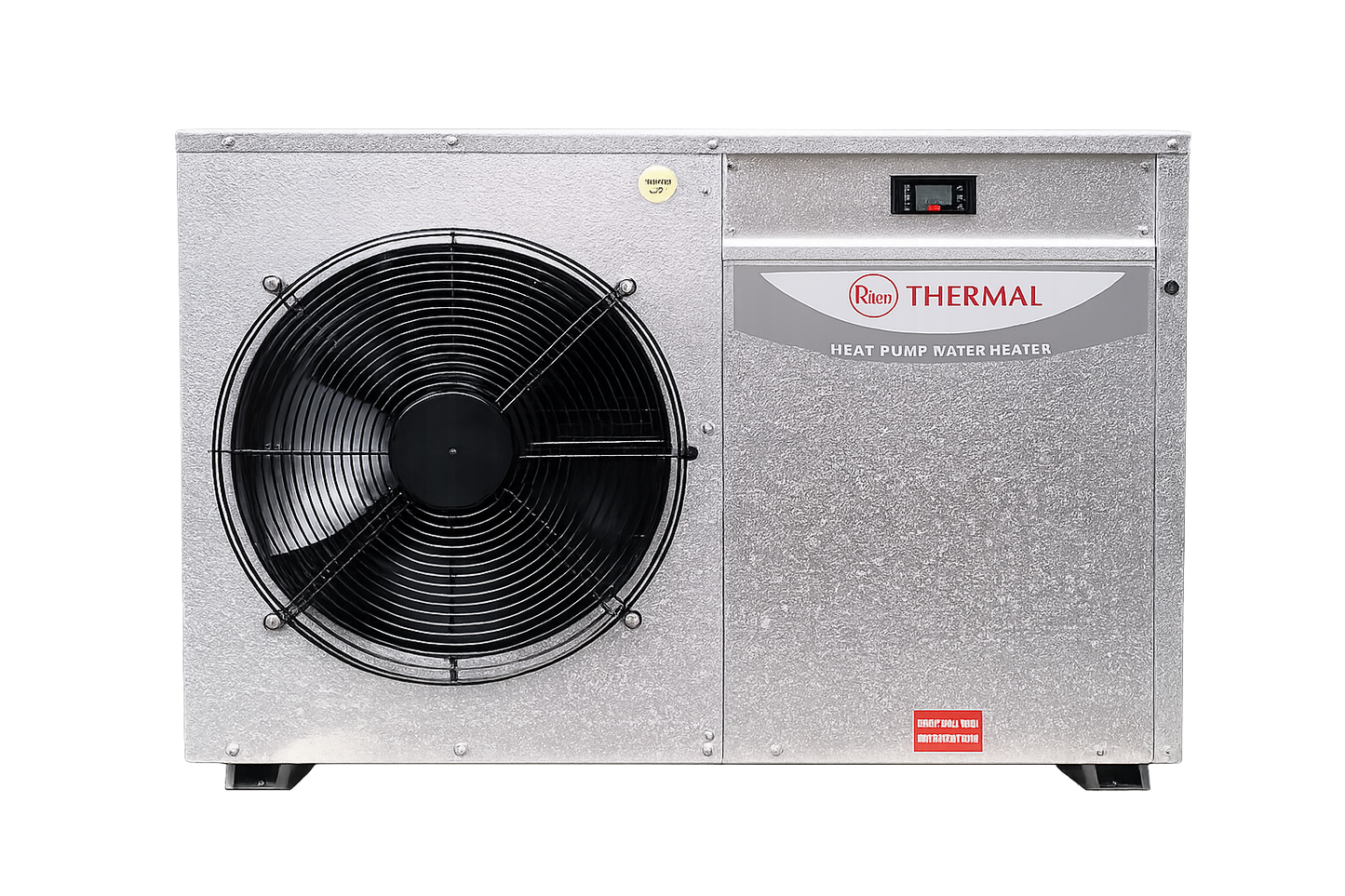

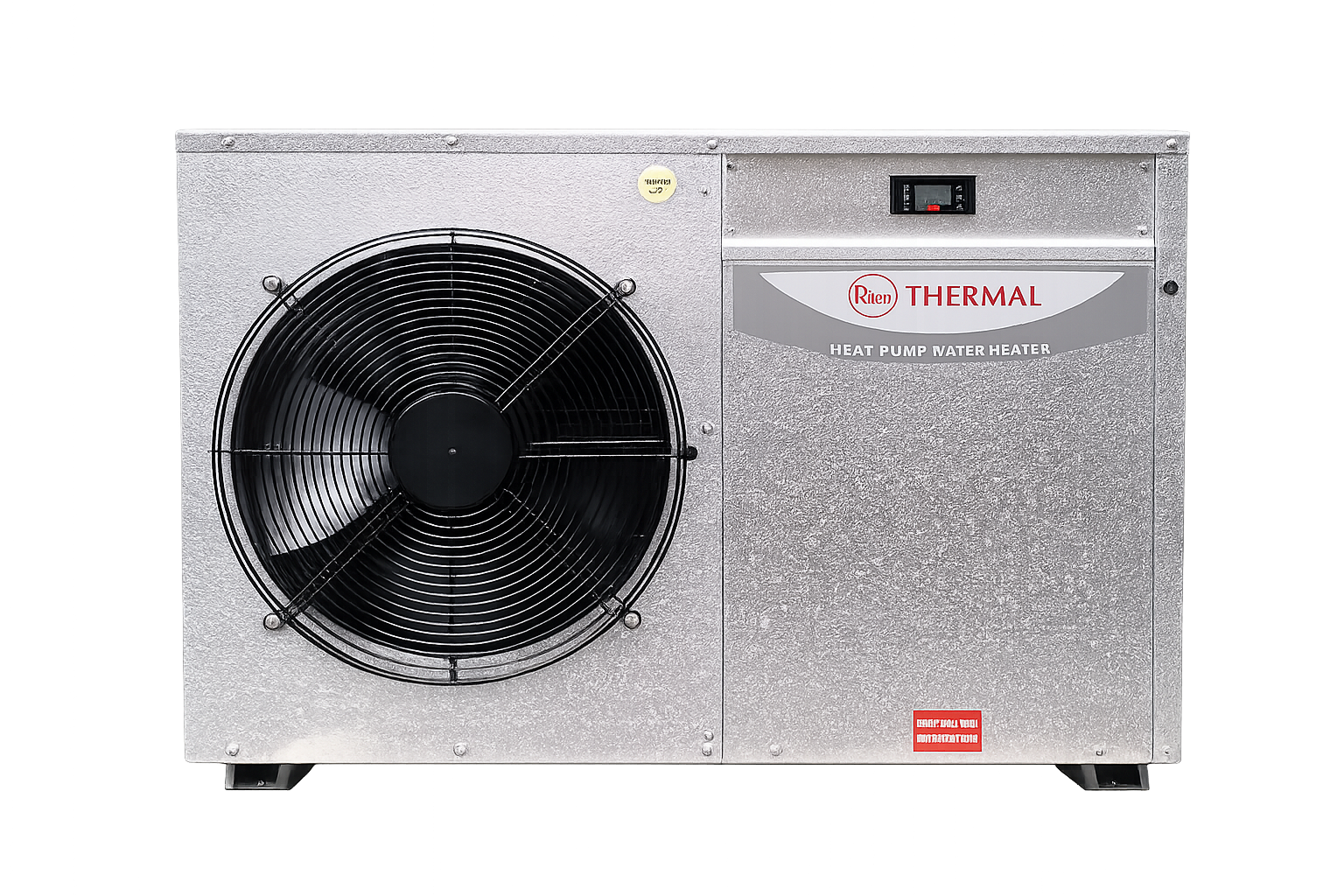

RTCH019TK Rheem Pool Chiller Heat Pump

These models have identical cooling performance and electrical specifications. Both models operate on a 380-415V three phase power supply, deliver a nominal cooling capacity of 18.93 kW, consume 4.32 kW, achieve a COP of 4.39, use R407C refrigerant, and feature a titanium shell and tube heat exchanger with Rheem IQ Control

The difference is the cabinet design:

• RTCH019TK-DQV-1 features a top discharge dual-fan design and measures 1200 × 565 × 983 mm. It requires 3.5 m of overhead clearance.
• RTCH019TK-DQH-1 features a side discharge dual-fan design and measures 1200 × 590 × 960 mm. It only requires 500 mm overhead clearance, but needs 2.5 m clearance in front of the fan discharge.

RTCH019TK-DQVL-1 (Engineering Drawing)

Engineering and manufacturing drawing:

• Overall dimensions and installation layout.
• Internal component locations.
• Exploded assembly views.
• Parts list with component numbers.
• Refrigeration pipework layout and internal construction.

Summary

• RTCH019TK-DQV-1: Product specification for the top discharge model.
• RTCH019TK-DQH-1: Product specification for the side discharge model.
• RTCH019TK-DQVL-1: Detailed engineering drawings of the low temperature top discharge model showing construction and internal components
