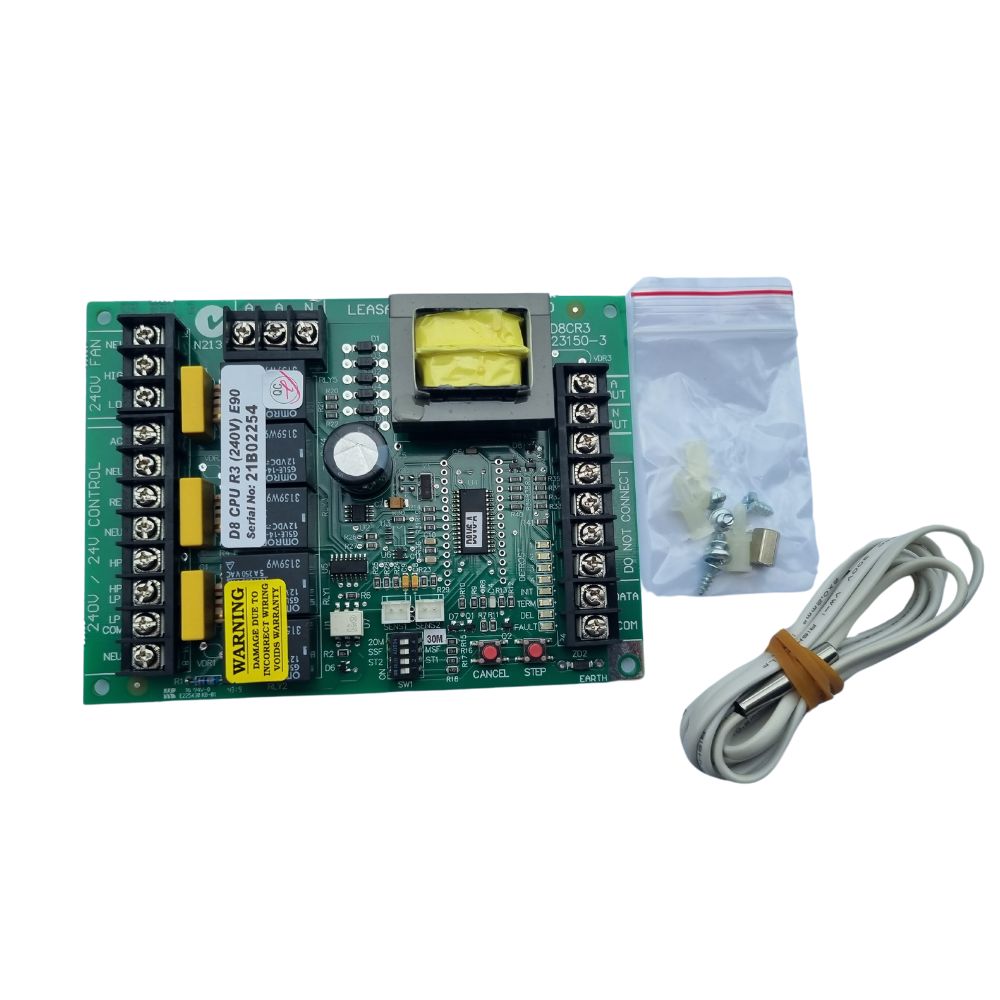

D8CPU Outdoor PCB Board

Operating Features:

1: Defrost Control features.
2: Defrost hold off time.
3: Defrost confirmation time.
4: Defrosts on time and/or temperature.
5: Residual water removal from condenser coil.
6: Indoor coil preheat cycle.
7: Two-speed Condenser fan control option.
8: Compressor Anti Cycle Timer.
9: High/ Low-Pressure safety trip protection.
10: Low-Pressure bypass on startup.
11: Random start time on mains power up.

Service Features:

1. Eight Enunciation LED’s to indicate system status.
2. Two push buttons for the technician. a) Cancel timers. b) Check the defrost operation.

Part or Model No
D8CPU
D8CR3 23150-3
AFS-D8CPUR3-1

Related Products
BM8 - This is the indoor board that communicates with the D8CPU (outdoor board)
BM7 - This is the wall controller that goes with the BM8 and D8CPU

Download Install Instructions

Download Wiring Diagram
